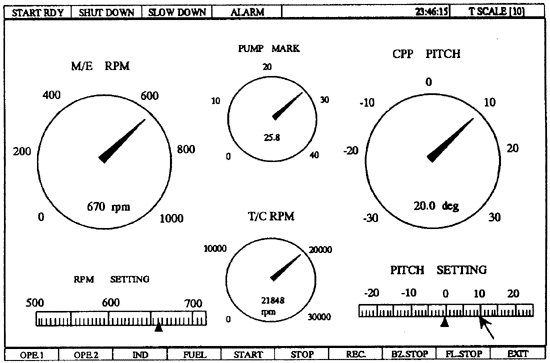

Fig 4 The Operation picture OPE-2 Meter Panel

shown in Table 3. It is easy for beginner or new students to compose and operate on the operation picture OPE-1 on switching "START RDY" in green lump of right procedure and beginning "main engine" by click in the upper column. The concrete training was enforced in set of condition that it do from status of dead ship to set up Stand-by (S/B) Engine and running operation.

3. SOME SIMULATIONS OF ENGINE SYSTEM

There needs four kinds of ship model and operation for MET of engine system as follows;

M1. running mode and operation at sea

M2. anchoring mode and operation in port

M3. stand-by mode of narrow channel and port

M4. emergency mode and operation in major trouble

Some simulation programs lists are provide for the above four models and operation with the 5 kinds of training items in engine system simulator in PC shown in Table 3. The actual training procedure are

P1. The first step which starts necessary auxiliary machines and warming-up main engine.

P2. The second step which runs the main engine in low speed when warming-up completed.
