important to give some useful training programs and easy operating simulators of marine engine system for the students, who will the after the three years' common curriculum course of nautical and engineering have to choice each course of them in three year later.

2. OUTLINE OF ENGINE SYSTEM SIMULATOR

The engine system simulator is made to be a model of the engine room of TSYM. The principal specification of main engine is shown in Table 2. This engine system simulator using BASIC program can be changed and rewritten for the many kinds of other mode and operation and configuration system. A full configuration of engine system are shown in Fig 3 OPE-1. Many kinds of running condition can be displayed on CRT monitor shown in Fig 4 OPE-2, on which we can see transient and dynamic conditions as well as steady state ones. On touching apparatus upon the equipment displayed the operation picture OPE-1 we can compose many kinds of operation item with operation of starting and stopping on clicking by mouse

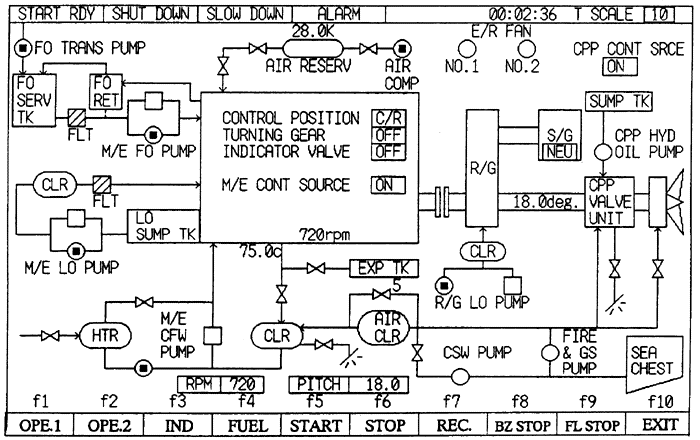

Fig 3 The color graphic display on the PC full configuration of engine system
operation picture OPE-1
