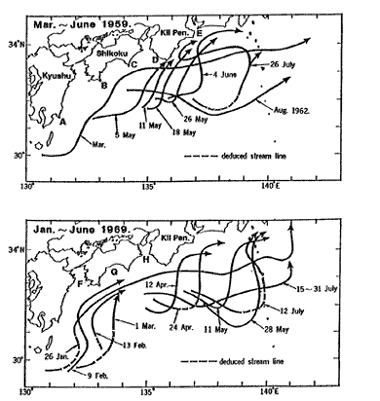

Fig. 8 Evolution of the Kuroshio path prior to the generation to the Large Meander of the Kuroshio in the period from March to August, 1959 (upper figure), and that from January to July, 1969 (lower figure). A : Cape Toi. B : Cape Ashizuri, C : Cape Muroto, D : Cape Shionomisaki, E : Cape Daio, F : Bungo Channel, G : Tosa Bay, and H : Kii Channel. (SHOJI, 1972)

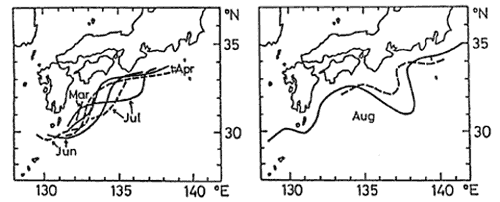

Fig. 9 Evolution of the Kuroshio path prior to the Large Meander of the Kuroshio in the period from March to July (left figure) and in August, 1975 (right figure). Dashed lines indicate the position in the first half of the month, and full lines indicate that in the second half. (KAWABE, 1980)
