Process Plant Modeling

For process plant modeling applications, SceneModeler technology can't be beat.

　

Photograph

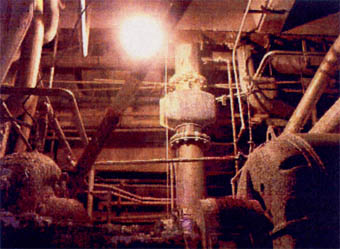

The following picture shows just a small portion of a large process plant.

　

　

Scanner Intensity Image

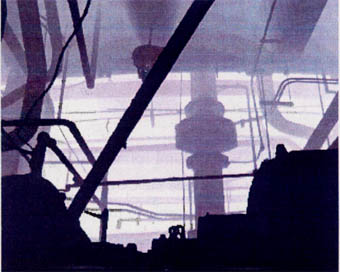

This intensity image was created in just seconds by SceneModeler

　

　

Scanned Range Image

Each pixel of the scanned image also contains 3D measurement data, captured at a rate of 125,000 measurements per second. This is shown here as a gray scale image with black close and white farther away. The actual range resolution and measurement accuracy of this and all SceneModeler data can be found on our specifications page.

　

　

Model

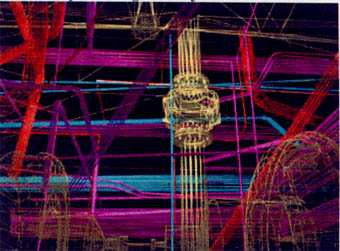

Models of this portion of the facility were quickly generated using Architect point-to-geometry software.

　
