8.3 「真空引き試験結果」

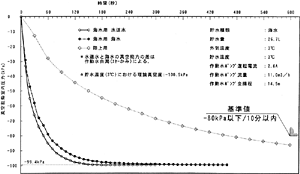

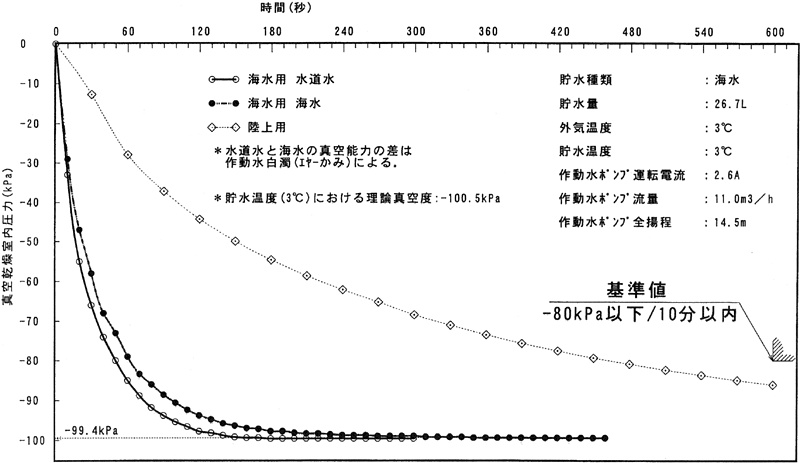

真空引き試験・海水
| （拡大画面：34KB） |
 |
|
真空引き試験データ・海水
| 経過時間 |
作動水流量 |
作動水ポンプ電流 |
乾燥室内圧力 |
乾燥室温度 |
貯水槽温度 |
| （秒） |
（m3/h） |
（A） |
（kPa） |
（℃） |
（℃） |
| 0 |
- |
- |
0 |
3 |
1 |
| 10 |
11.0 |
2.6 |
-29.0 |
3 |
1 |
| 20 |
11.0 |
2.6 |
-47.0 |
3 |
1 |
| 30 |
11.0 |
2.6 |
-58.0 |
3 |
1 |
| 40 |
11.0 |
2.6 |
-68.0 |
3 |
1 |
| 50 |
11.0 |
2.6 |
-73.0 |
3 |
1 |
| 60 |
11.0 |
2.6 |
-79.0 |
3 |
1 |
| 70 |
11.0 |
2.6 |
-83.4 |
3 |
1 |
| 80 |
11.0 |
2.6 |
-86.0 |
3 |
1 |
| 90 |
11.0 |
2.6 |
-88.6 |
3 |
1 |
| 100 |
11.0 |
2.6 |
-90.6 |
3 |
1 |
| 110 |
11.0 |
2.6 |
-92.4 |
3 |
1 |
| 120 |
11.0 |
2.6 |
-93.8 |
3 |
1 |
| 130 |
11.0 |
2.6 |
-94.8 |
3 |
1 |
| 140 |
11.0 |
2.6 |
-95.8 |
3 |
1 |
| 150 |
11.0 |
2.6 |
-96.4 |
3 |
1 |
| 160 |
11.0 |
2.6 |
-97.0 |
3 |
1 |
| 170 |
11.0 |
2.6 |
-97.2 |
3 |
1 |
| 180 |
11.0 |
2.6 |
-97.8 |
3 |
1 |
| 190 |
11.0 |
2.6 |
-97.8 |
3 |
1 |
| 200 |
11.0 |
2.6 |
-98.2 |
3 |
1 |
| 210 |
11.0 |
2.6 |
-98.4 |
3 |
1 |
| 220 |
11.0 |
2.6 |
-98.4 |
3 |
1 |
| 230 |
11.0 |
2.6 |
-98.6 |
3 |
1 |
| 240 |
11.0 |
2.6 |
-98.8 |
3 |
1 |
| 250 |
11.0 |
2.6 |
-98.8 |
3 |
1 |
| 260 |
11.0 |
2.6 |
-98.8 |
3 |
1 |
| 270 |
11.0 |
2.6 |
-99.0 |
3 |
1 |
| 280 |
11.0 |
2.6 |
-99.0 |
3 |
1 |
| 290 |
11.0 |
2.6 |
-99.0 |
3 |
1 |
| 300 |
11.0 |
2.6 |
-99.0 |
3 |
1 |
| 310 |
11.0 |
2.6 |
-99.2 |
3 |
1 |
| 320 |
11.0 |
2.6 |
-99.2 |
3 |
1 |
| 330 |
11.0 |
2.6 |
-99.2 |
3 |
1 |
| 340 |
11.0 |
2.6 |
-99.2 |
3 |
1 |
| 350 |
11.0 |
2.6 |
-99.4 |
3 |
1 |
| 360 |
11.0 |
2.6 |
-99.4 |
3 |
1 |
| 370 |
11.0 |
2.6 |
-99.4 |
3 |
1 |
| 380 |
11.0 |
2.6 |
-99.4 |
3 |
1 |
| 390 |
11.0 |
2.6 |
-99.4 |
3 |
1 |
| 400 |
11.0 |
2.6 |
-99.4 |
3 |
1 |
| 410 |
11.0 |
2.6 |
-99.4 |
3 |
1 |
| 420 |
11.0 |
2.6 |
-99.4 |
3 |
1 |
| 430 |
11.0 |
2.6 |
-99.4 |
3 |
1 |
| 440 |
11.0 |
2.6 |
-99.4 |
3 |
1 |
| 450 |
11.0 |
2.6 |
-99.4 |
3 |
1 |
| 460 |
11.0 |
2.6 |
-99.4 |
3 |
1 |
|
真空引き試験データ・水道水
| 経過時間 |
作動水流量 |
作動水ポンプ電流 |
乾燥室内圧力 |
乾燥室温度 |
貯水槽温度 |
| （秒） |
（m3/h） |
（A） |
（kPa） |
（℃） |
（℃） |
| 0 |
- |
- |
0 |
5 |
8 |
| 10 |
11.0 |
2.6 |
-33.0 |
5 |
8 |
| 20 |
11.0 |
2.6 |
-55.0 |
5 |
8 |
| 30 |
11.0 |
2.6 |
-67.0 |
5 |
8 |
| 40 |
11.0 |
2.6 |
-74.0 |
5 |
8 |
| 50 |
11.0 |
2.6 |
-80.0 |
5 |
8 |
| 60 |
11.0 |
2.6 |
-85.0 |
5 |
8 |
| 70 |
11.0 |
2.6 |
-88.8 |
5 |
8 |
| 80 |
11.0 |
2.6 |
-91.8 |
5 |
8 |
| 90 |
11.0 |
2.6 |
-93.8 |
5 |
8 |
| 100 |
11.0 |
2.6 |
-95.4 |
5 |
8 |
| 110 |
11.0 |
2.6 |
-96.6 |
5 |
8 |
| 120 |
11.0 |
2.6 |
-97.8 |
5 |
8 |
| 130 |
11.0 |
2.6 |
-98.2 |
5 |
8 |
| 140 |
11.0 |
2.6 |
-98.8 |
5 |
8 |
| 150 |
11.0 |
2.6 |
-99.2 |
5 |
8 |
| 160 |
11.0 |
2.6 |
-99.4 |
5 |
8 |
| 170 |
11.0 |
2.6 |
-99.4 |
5 |
8 |
| 180 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
| 190 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
| 200 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
| 210 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
| 220 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
| 230 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
| 240 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
| 250 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
| 260 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
| 270 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
| 280 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
| 290 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
| 300 |
11.0 |
2.6 |
-99.6 |
5 |
8 |
|

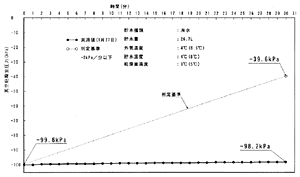

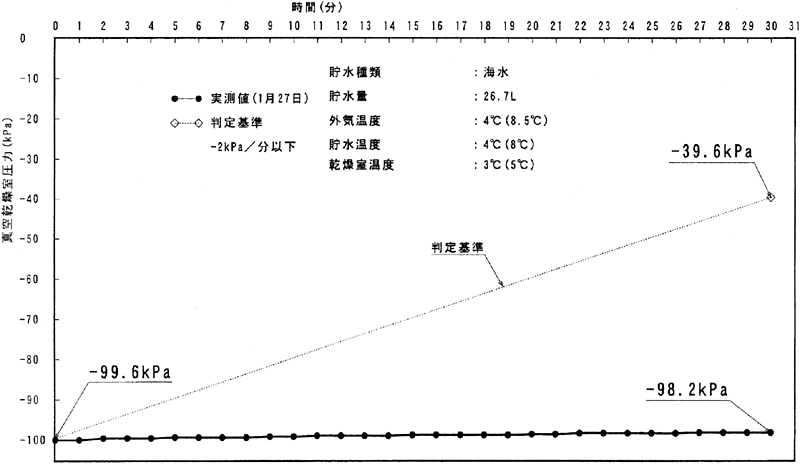

真空保持試験
| （拡大画面：23KB） |
 |
|
真空保持試験データ
| 経過時間 |
乾燥室圧力 |
|
経過時間 |
乾燥室圧力 |
| （分） |
（kPa） |
|
（分） |
（kPa） |
| 0 |
-99.6 |
|
16 |
-98.8 |
| 1 |
-99.6 |
|
17 |
-98.8 |
| 2 |
-99.6 |
|
18 |
-98.8 |
| 3 |
-99.6 |
|
19 |
-98.8 |
| 4 |
-99.6 |
|
20 |
-98.6 |
| 5 |
-99.4 |
|
21 |
-98.6 |
| 6 |
-99.4 |
|
22 |
-98.4 |
| 7 |
-99.4 |
|
23 |
-98.4 |
| 8 |
-99.4 |
|
24 |
-98.4 |
| 9 |
-99.2 |
|
25 |
-98.4 |
| 10 |
-99.2 |
|
26 |
-98.4 |
| 11 |
-99.0 |
|
27 |
-98.2 |
| 12 |
-99.0 |
|
28 |
-98.2 |
| 13 |
-99.0 |
|
29 |
-98.2 |
| 14 |
-99.0 |
|
30 |
-98.2 |
| 15 |
-98.8 |
|
|
|
|
|
|
|
