Side Thruster
We have provided over 2,500 Kamome Side Thrusters since the product was first manufactured in 1966.
Small-sized thrusters are used for working ships and fishing boats, and large-sized units for passenger boats, merchant ships, and various special purpose ship.
We continue to develop our products for special use and conditions, thus making great contributions to the modernization of ships.
Features
1. Great durability
An adopted strong unified drive shafting and durable parts for long-term continuous operation.
2. Easy fitting
Adoption of thick plate duct without rib.
3. Decreased vibrations and noise
Specially designed propeller shape and arrangement.
4. Rational maintenance
Easy periodical inspection; seal can be changed without dismantling the shaft.
5. Easy control system
Compact new control system for exclusive use.
6. Variety
Customers can choose control systems according to the ship equipment and driving conditions.
Types
■ TCA
Controllable Pitch Propeller Type (driving thrust: from 10 kN to 190 kN)
Drive: electric motor, engine, hydraulic
Arrangement: horizontal and vertical types
■ TFA
Fixed Pitch Propeller Type (Thrust: from 3 kN to 80 kN)
Drive: electric motor, engine, hydraulic
Arrangement: horizontal and vertical types, small type for in-tunnel suspended installation
■ TFL
Horizontal one-way discharge (suction from the ship's bottom) Type (Thrust: from 3 kN to 20 kN)

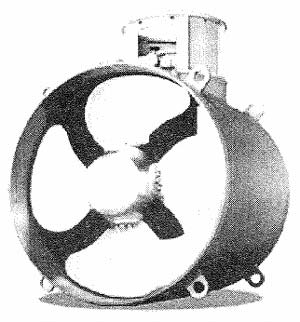

Type TCA

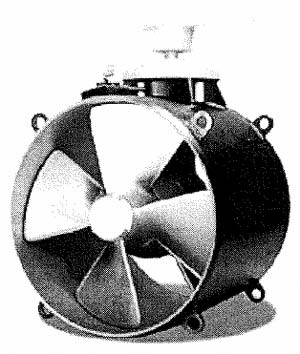

Type TFA

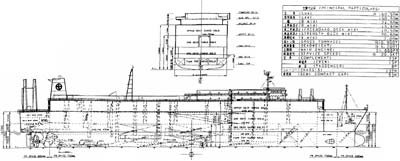

Ro-Ro Ship
| Build by |
Yamanishi Corporation Hull No. 1027 |
| Gross Tonnage |
12,664 tons |
| Length Overall |
160.56 meters |
| Main Engine |
15,886kW(21,600PS)×430/160min-1 |
Installation of KAMOME Products |
| Controllable Pitch Propeller |
CPC-160BRN (Dia. 5,400mm) |
| Bow Thruster |
TCA-185S (Thrust Power 176.6kN) |
| Stern Thruster |
TCA-185S (Thrust Power 176.5kN) |
| K7 Flap Rudder |
K7-M1400 |
| Joystick Control System |
MACS-1111 |
|
|

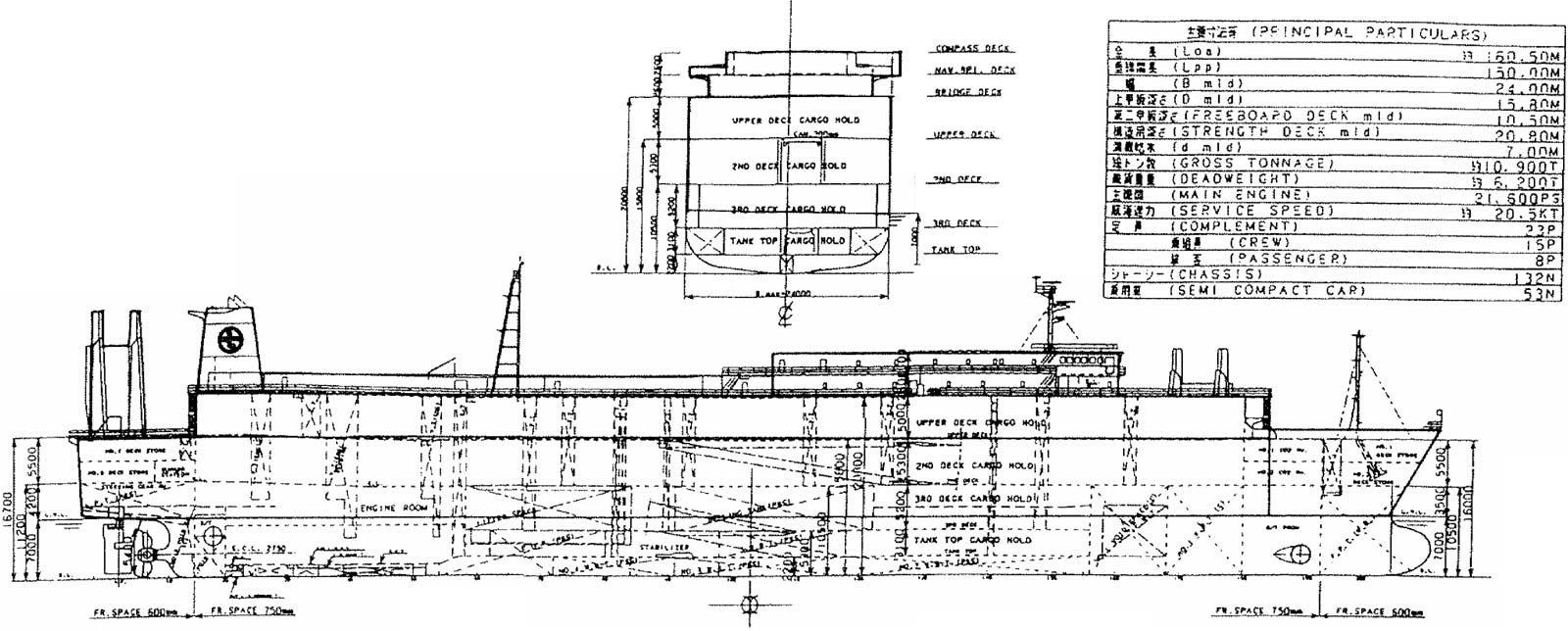

（拡大画面：168KB）
|
 |
|
