□ CARGO CONTAINMENT TYPE
| ・ |
COMPARISON OF TANK TYPE |
| ・ |
SPHERICAL & MEMBRANE TYPE |
| |
− |
GENERAL ARRANGEMENT |
| |
− |
INDEPENDENT TYPE B & MEMBRANE TYPE |
| |
− |
STANDARD LNG CARRIERS |
| |
− |
ADVANTAGES |
・COMPARISON OF TANK TYPE
| 1) Containment Type |
SELF SUPPORTING |
MEMBRANE |

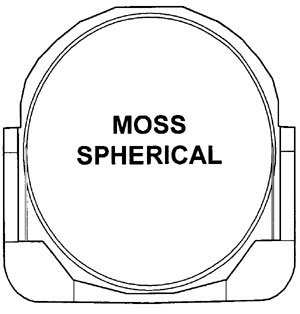

| SPHERICAL |
GTT MARK III |
GTT NO.96 |
| 2) Outline Configuration |
 |
 |
 |
| 3) Tank material |
AL ALLOY |
SUS : 1.2mm |
INVAR : 0.7mm |
| 4) Insulation |
Styrofoam FX-SG-L - 250mm |
Polyurethane Foam - 270mm |
Plywood Box with_Perlite - 530mm |
| 5) Filling Level |
Any Filling Level |
Restricted |
Restricted |
|
・GENERAL ARRANGEMENT

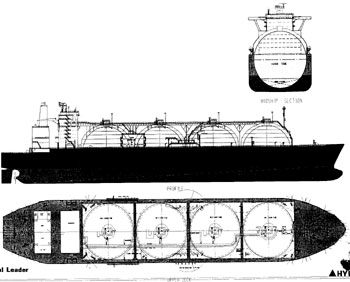

●137,000m3 SPHERICAL TYPE LNG CARRIER
・ADVANTAGES OF SPHERICAL LNGC
- SAFETY
- ANY FILLING
- EASY MAINTENANCE
- EASY STRIPPING
- EASY INSPECTION
・INDEPENDENT TYPE B

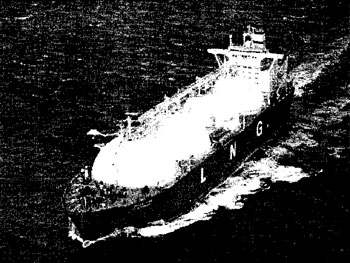

・SPHERICAL TYPE LNGC AL ALLOY 5083-O
125,000m3 LNG CARRIER
|
