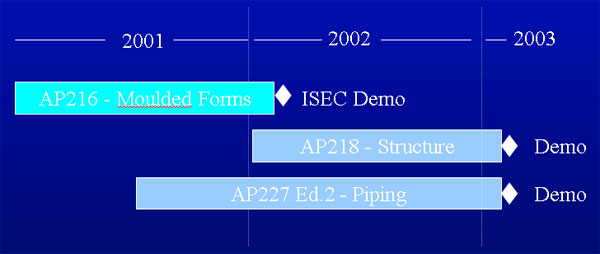

Schedule
| （拡大画面：26KB） |
 |
Year 2 Demo Details
■The Buyer’s design agent (using Proteus’ Flag Ship Naval Arch Software)
》develops initial hullform
》forwards data via intermet to another design agent for finalization
■Design Agent 1 (using Foran CAD System)
》downloads data into Foran System and modifies hullform
》forwards data to Shipyard Design Team via internet
■Shipyard Design Team (using Intergraph’s GSCAD System)
》downloads data into GSCAD System
》validates powering and resistance via internet using ABS’ new rules DB
》modifies bulkhead and adds frame table and new deck
》forwards to ABS for finite element analysis and to Shipyard #1 via internet
■Class Society (SafeHull)
》ABS downloads data into Safehull program for analysis
■Shipyard 1 (using Catia CAD system)
》downloads data into Catia and modifies bulkheads
》forwards to Shipyard #2 via internet
■Shipyard 2 (using Tribon CAD system )
》downloads data into Tribon and adds/modifies attributes

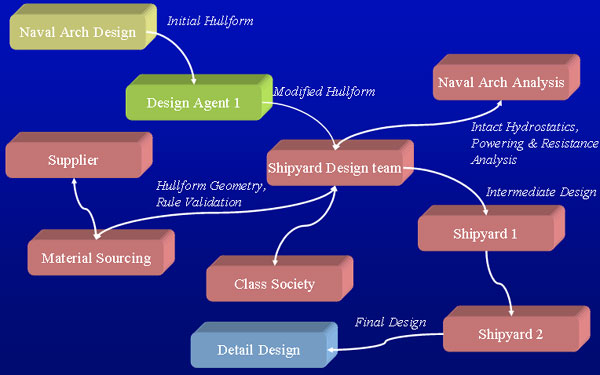

Business Case: Hull Design
| （拡大画面：45KB） |
 |

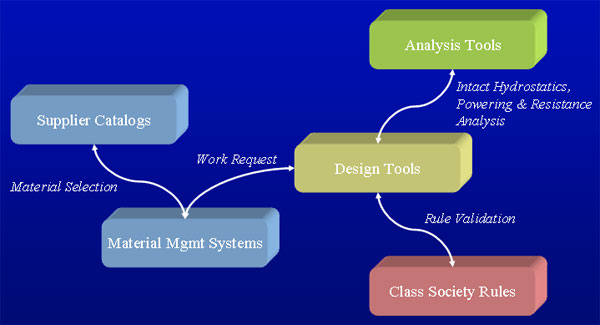

Business Case: Tool Integration
| （拡大画面：30KB） |
 |

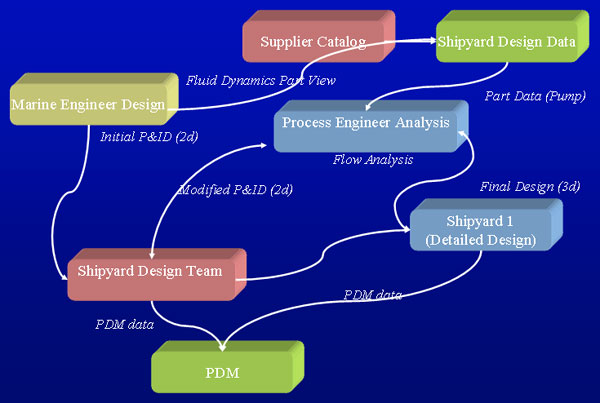

Business Case: Piping Design Integration
| （拡大画面：44KB） |
 |
Year 3 Possible Scenario
| （拡大画面：12KB） |
 |
|
