Status of ESTEP Project
November 4, 2002 WG 3/T 23 Ship Team Meeting Seoul, Korea
Ron Wood Northrop Grumman Ship Systems
ESTEP Participants
■Electric Boat
■Northrop Grumman Ship Systems (Ingalls)
■NSWCCD
■Intergraph (GSCAD)
■Atlantec (TRIBON/CATIA)
■ABS
■STEP Tools (CATIA Struct.)
■Sener
Background
■National Ship Research Program Project
●Portion of Integrated Shipbuilding Environment (ISE)
■Phase 1: September 1999 to May 2000
■Phase 2: May 2000 to August 2003
●Task 4.1 Structural Translator Development - Matthias Grau (Atlantec-es)
●Task 4.2 Prototype Piping Translator Development - Dr. Burton Gischner (Electric Boat Corporation)
●Task 4.3 ISO STEP Coordination & Modularization - Ron Wood (Northrop Grumman Ship Systems)

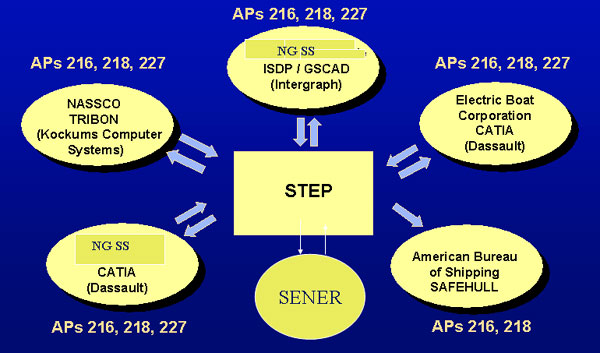

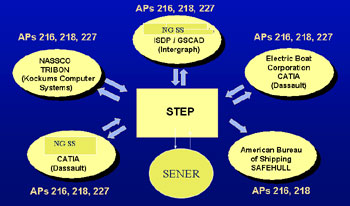

ESTEP - Shipyard and CAD System Environments
| （拡大画面：55KB） |
 |

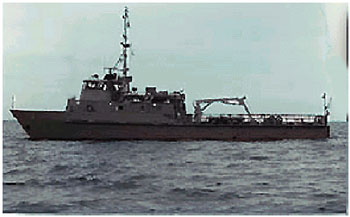

Test Case: 120' Torpedo Weapons Retriever
|
