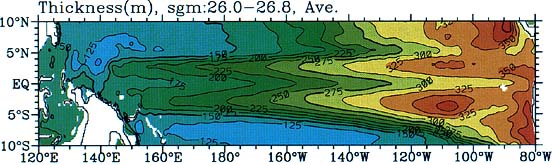

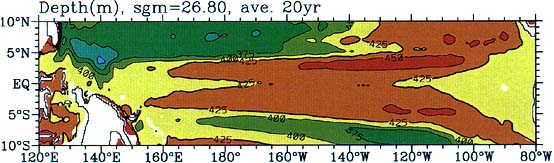

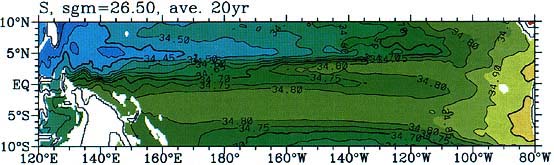

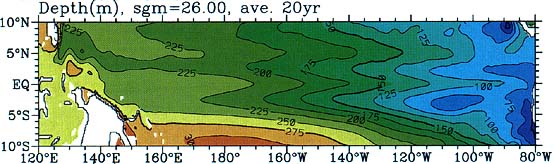

Figure 3: Model annual mean properties on isopycnals. Salinity on potential density of 26.5σθ with contour intervals of 0.05 psu (top). Depths of 26.0σθ (second panel from top) and of 26.8σθ (third panel from top). Thickness between the isopycnals of 26.0σθ and 26.8σθ (bottom). The contour interval for depths and thickness is 25m.
