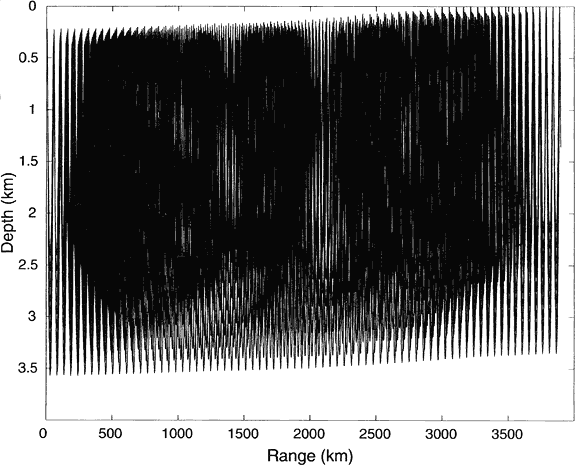

Figure 4. The ray paths associated with resolved ray arrivals for acoustic transmissions from Kauai to receiver d. Near Hawaii the ray paths do not sample the upper 100-200 m of the ocean, while near California the rays are surface reflecting, or near-suface refracting. These raypaths were derived using the annual mean Levitus ocean atlas.
