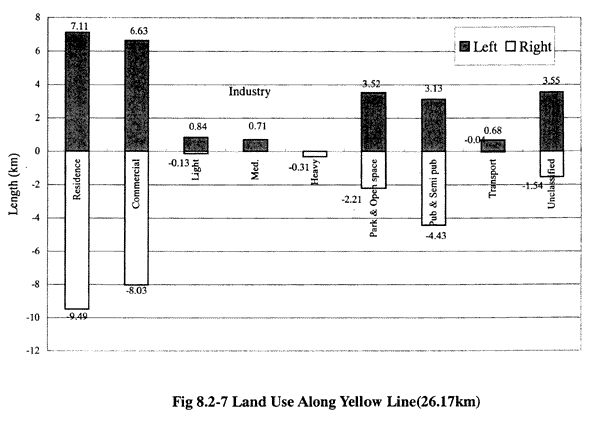

With respect to parking and open space, and pub and semi pub, such land use is remarkable along the Red line, the Blue line and the Yellow line. Regarding unclassified land use which includes military or air force land use, such land use is remarkable along the Yellow line.
8.2.5 Ambient Air Quality Status
Karnataka State Pollution Control Board had been monitoring ambient air quality in Bangalore for National Ambient Air Quality Project. Monitoring was carried out at three monitoring stations located at Ananda Rao Circle, Amco Batteries, Mysore Road and Graphite India, Krishnarajpuram Industrial Estate. The results of the air monitoring tests for NOx, SPM (suspended particular matter) and SO2, during the years 1987 - 1997 are shown in Fig. 8.2-8, 9, 10.
Ambient air quality standards for industrial area, residential, rural and other area, sensitive area stipulated by Central Pollution Control Board of Karnataka State are also shown in Fig. 8.2-8, 9, 10. From the observed data, linear regression curves were established by the
