7. System Plan
7.1 Rail Vehicle
7.1.1 Design Concept
Vehicle configuration is 30 meters longer by 2.85 meters wide, double ended twin-car On 3 bogies, single articulation.
One vehicle can run by itself but the trains are composed by 2〜4 vehicles.
Traction motor are 3 phase asynchronous AC motor and are controlled by the inverter system with regenerative braking system.
7.1.2 Specification

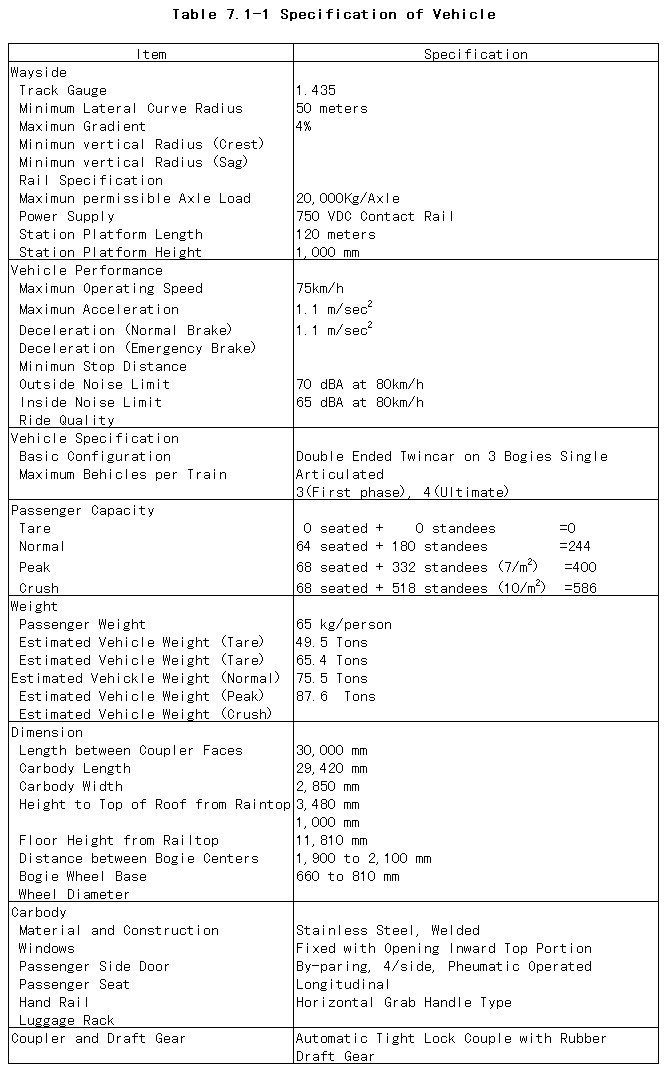

Table 7.1-1 shows Vehicle specifications. See Appendix 7.1-1.
