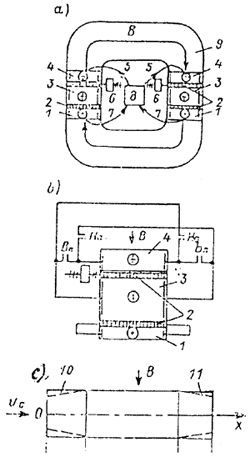

Fig.2

Scheme of ship power installation with direct transformation of energy.

a) cross-section of installation;

b) electric circuit;

c) MHDM with controllable nozzles;

1 - liquid-metallic MHDP;

2 - ThEG;

3 - MHDM;

4 - MHDG;

5 - ioined steam of metal;

6 - tirister invertors;

7 - liquid metal;

8 - fast reactor;

9 - superconductive electromagnet;

10, 11 - inlet outlet controllable nozzles;

13 - magnetic induction; Bn - ahead; Ha - astern;

Vc - speed of a ship.
