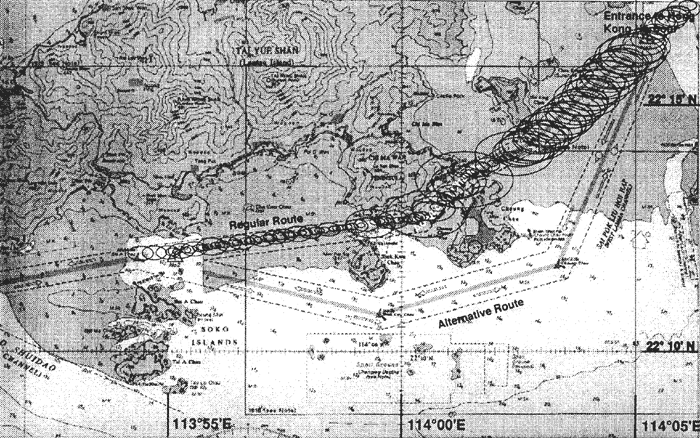

Figure 2: Absolute Value of Diffs. between Computed Course and Compass Course Plotted on Chart

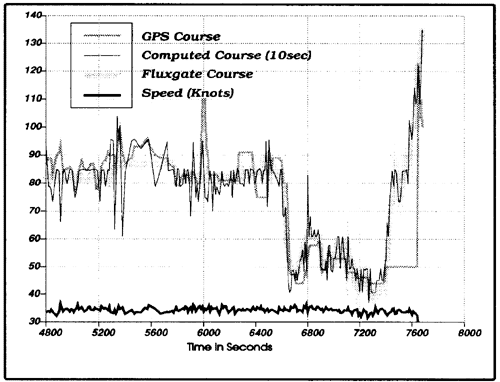

Figure 3: Heading Outputs and Speed plotted against time
Figure 3 shows the results of a similar recording made on a different voyage. The following are plotted against time in seconds:
Fluxgate Compass Course in degrees. Course values derived from GPS positions every 10 seconds in degrees Course Made Good (CMG) values output from the GPS in degrees The output from the speed log in knots
Fluxgate Compass Course in degrees.
Course values derived from GPS positions every 10 seconds in degrees
Course Made Good (CMG) values output from the GPS in degrees
The output from the speed log in knots
