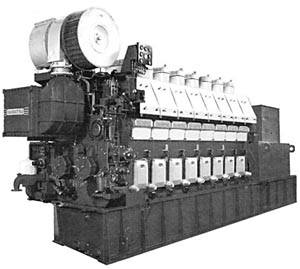

■ Marine Gensets Diesel Engine ■
DC-32

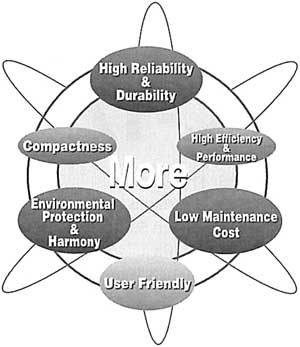

CONCEPT
8DC-32
・Energy saving, environment friendly, low NOx
・New 6/8-cylinder engine with cutting-edge technologies
・High performance, low operating costs
PRINCIPAL DATA
| Number of Cylinder |
6 |
8 |
| Cylinder Bore×Piston Stroke (mm) |
φ320×400 |
| Stroke / Bore-Ratio |
1.25 |
| Engine Speed (min-1） |
720 |
750 |
720 |
750 |
| Piston Speed (m/s) |
9.6 |
10.0 |
9.6 |
10.0 |
| Break Mean Effective Pressure (MPa) |
2.51 |
2.41 |
2.49 |
2.39 |
| Engine Output (kWm) |
2,905 |
3,844 |
| Max. Combustion Pressure (Mpa) |
17.7 |
| Fuel Oil |
up to 700mm2/s @ 50℃ (CIMAC H55) |
| Engine dry Mass (kg) |
35,000 |
40,000 |
| Air Cooler |
2-Stage (Air heating design at low load) |
|
|
