LEVEL ECHO
RADAR TYPE
LEVEL GAUGE
APPLICATION
Level gauging in liquid cargo tanks
FEATURES
1. High accuracy
2. Automatic tracking function
3. Countermeasures to EMI for operational stabilization
4. Anti-rusting measures with inert gas sealing inside of housing
5. Downsized body
WORKING PRINCIPLE
Emitted microwave from antenna is a frequency modulated continuous wave.
Transmitter receives reflected wave from liquid surface by antenna, and detects proportional frequency (Δf) to time difference (Δt). (Fig.1)
Frequency difference between transmitted and received waves is proportional to round distance (2R). Any noises from internal structures are filtered by means of Fast Fourier Transform processing after amplifying beat signal. Then the actual distance between antenna and liquid surface can be obtained. (Fig.2 & Fig.3)

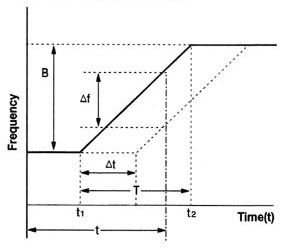

Fig.1 Transmitting Frequency
SCHEMATIC

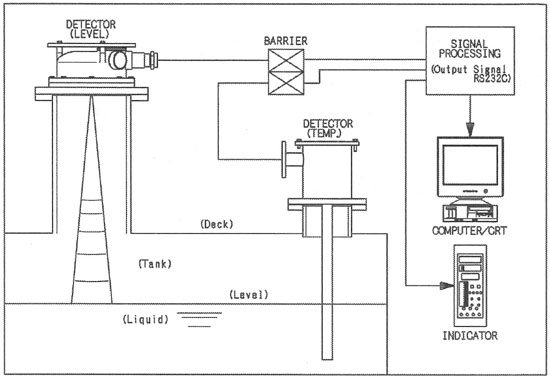

[Type: LEV2]

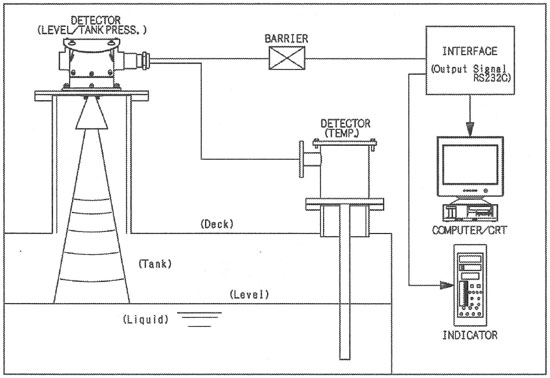

[Type: LE]
PARTICULARS
[Type: LEV2]
Method: FMCW
Anti-explosion: Exia IIC T5
Protection class: IP66
Frequency: 9.5 - 10.5 GHz (X band)
Beam angle: 11 degree
Measuring range: 22m, max*
Measuring liquid: Crude oil, products, chemicals, fuel oil, fresh water, sea water, etc.
Resolution: 1 mm
Accuracy: Detection, within±5mm**
Environment:
(Weather) -30〜+70℃
(In room) 0〜55℃
Transmission: (detector to control part) Serial digital signal
Output signal: Serial digital signal
Major material: SUS 304 (option SUS316)
Power source: 100/200Vac or 110/220Vac
Elect. consumption: 5 W/tank
Size: Terminal box: 175H, flange φ385
Weight: Approx. 25 kg, include. fitting flange
[Type: LE]
Method: FMCW
Anti-explosion: Exia IIC T6
Protection class: IP66
Frequency: 9.5 - 10.5 GHz (X band)
Beam angle: 11 degree
Measuring range: 40m, max*
Measuring liquid: Crude oil, products, chemicals, fuel oil fresh water, sea water, etc.
Resolution: 1 mm
Accuracy: Detection, within±5mm**
Environment:
(Weather) -30〜+70℃
(In room) 0〜55℃
Transmission: (detector to control part) Audio signal, convertible to RS485
Output signal: Serial digital signal
Major material: SUS 304 (option SUS316)
Power source: 100/200Vac or 110/220Vac
Elect. consumption: 5 W/tank
Size: Terminal box:175H, flange φ385
Weight: Approx. 30kg, include. fitting flange
Note)
*: Minimum measuring distance (antenna offset) will be influenced by the surrounding structure.
**: at the shop test
|
