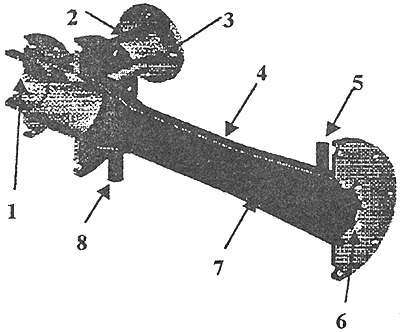

Figure 1. The plasma fired-eductor geometry illustrating (1) the plasma torch holder, (2) the waste and process air feed, (3) cooling air in, (4) water-ooled bousing, (5) cooling water out, (6) liner cooling air used to complete combustion, (7) super alloy liner, and (8) cooling water in.
