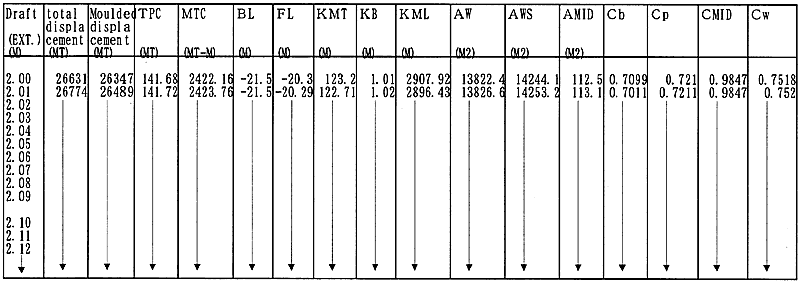

Hydrostatics_tableの例
property_name
MTC moment for unit change of trim
BL center of buoyancy from midship
FL center of flotation from midship
KB center of buoyancy from keel
KML longitudinal meta center hight
KMT transverse meta center hight
AW waterplane area
AWS wetted surface area
AMID midship section area
TPC Ton per one c. m. immersion
Cb Block coefficient
Cp Prismatic coefficient
CMID Midship area coefficient
Cw Water plane area coefficient
Principal dimension
LENGTH B.P. 317.00m
BREADTH (MLD.) 58.00m
DEPTH (MLD.) 31.400m
DRAFT (MLD.) 20.60_22.00m
Remark:
Marks in BL & FL
"-" mean forward position from midship
Thickness of keel plate --- 30mm
Specific gravity of sea water to be 1.025
