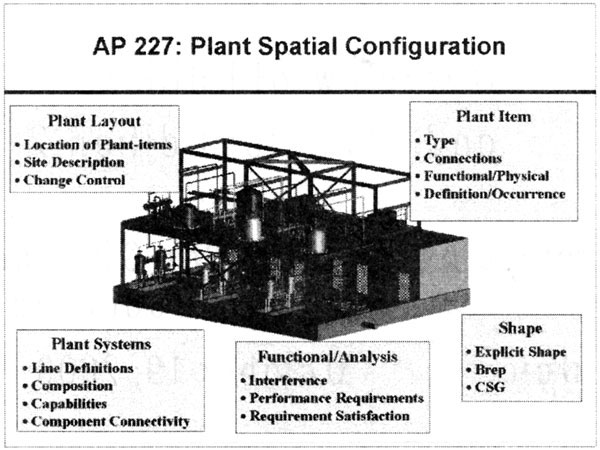

Diagram of Functionality of AP227 Edition 1

　

AP227-Plant Spatial Configuration-Edition 1

Scope: 3D Plan Design

・Emphasis on piping design

・Includes physical and functional characteristics and references to specs. and stream design cases

Status:

・Approved for distribution as an Int'l Standard (IS)

・Commercial implementations:

・Dassault/CCPlant: in production

・Bentley/PlantSpace (Micro Station): in development

Cadcentre/PDMS: in development

・Merck pilot project started

・NASA has agreed to adopt AP227

Edition 1 Project Team: PlantSTEP, NIST and PDIT
