添付資料 13
防火構造図の案(DIN)
Annex A to ISO xxxxx

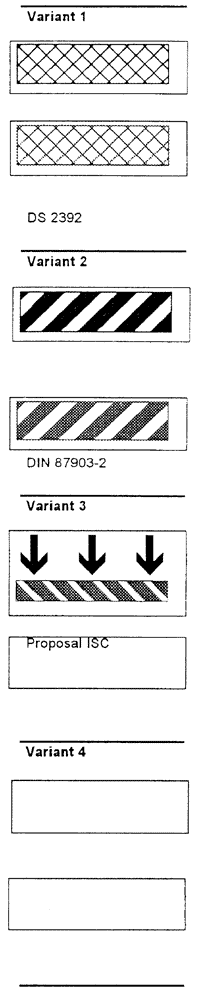

Graphical illustration:
Referent: Symbols for structural fire protection
Description of the communications problem:
Indication of details on the general structural fire protection plan.
Reasons for a symbol:
Information needs to be understood by multilingual audiance. Need for a symbol is growing because of increasing concern of safety.
Function:
To signify the fire class of the deck.
Field of application:
General structural fire protection plan.
Format of application:
General height 18 mm, width 40 mm.
User population:
Approval authorities.
Subdivision of referent:
SOLAS Chapter II-2 and ISO 15720
Related referents:
(E) A 60 deck
Notes:
Original image:
Colour ref. ISO 15720 Annex A.
