* 　In the octal notation for the first 10 chips of the C/A code as shown in this column, the first digit (1) represents a "1" for the first chip and the last three digits are the conventional octal representation of there maining 9 chips. (For example, the first 10 chips of the C/A code for PRN Signal Assembly No.1 are: 1100100000).

** 　C/A codes 34 and 37 are common.

***　PRN sequences 33 through 37 are reserved for other uses (e.g. ground transmitters).

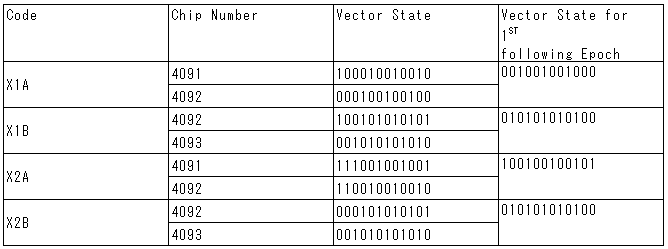

表5-8　Final Code Vector States
