MPC7.15
(cont'd)
|
Height of the cargo
column above the cargo tank bottom,hc

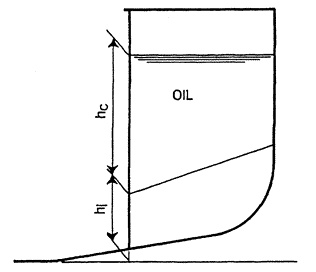

hc is the height of the cargo column measured from
the cargo tank bottom at the point where bi is
measured. Refer to figure 2.
|
FIGURE 2

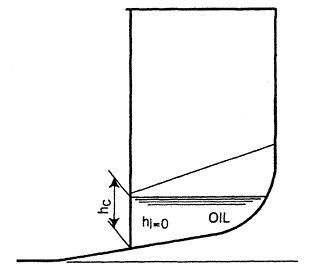

Where a double bottom does not exist then hc is to be
taken at its maximum value considering any deadrise of the
ship, Refer to figure 3.
FIGURE 3
