Note

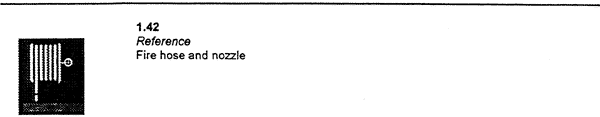

Indicate the hose length, nozzle diameter and type of connection at the right hand of the symbol; where only one type of hose is used, this information might be shown in the legend. A letter identifying the type of media should also be indicated. Extinguishing media should be colour coded in the lower part of the symbol and indicated by a letter at the right side of the symbol as follows：

Yellow - F for foam

White - P for powder

Green - W for water

　

Note

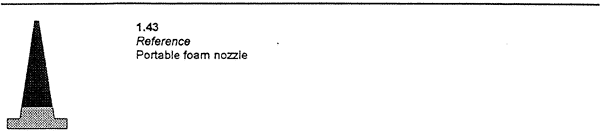

Indicate the type of the connection in legend.

　

Notes

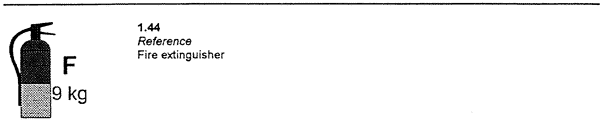

Indicate type of media and capacity (kg for CO₂ and powder, I for water and foam) at the right of the symbol.

Extinguishing media should be colour coded in the lower part of the symbol and indicated by a letter at the right side of the symbol as follows：

Grey - CO₂ for carbon dioxide

Yellow - F for foam

Brown - H for halon or halon equivalent

White - P for powder

Green - W for water
