Note

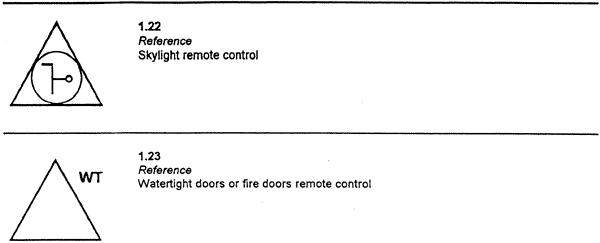

Add at the right side of the symbol WT to indicate watertight doors remote control or FSD to indicate fire doors remote control.




Notes

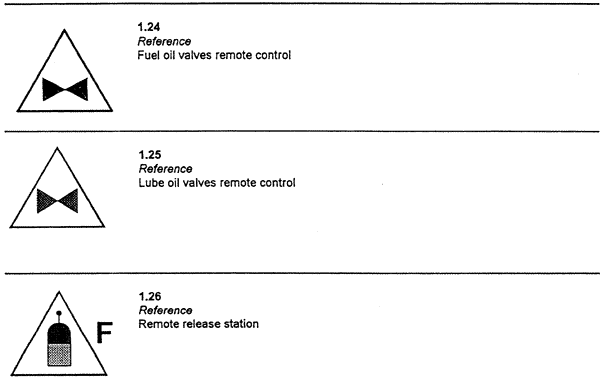

Indicate reference of the number of the system, if necessary. Extinguishing media should be colour coded in the lower part of the symbol and indicated by a letter at the right side of the symbol as follows:

Grey - CO2 for carbon dioxide

Yellow - F for foam

Brown - H for halon or halon equivalent

White - P for powder

Green - W for water
