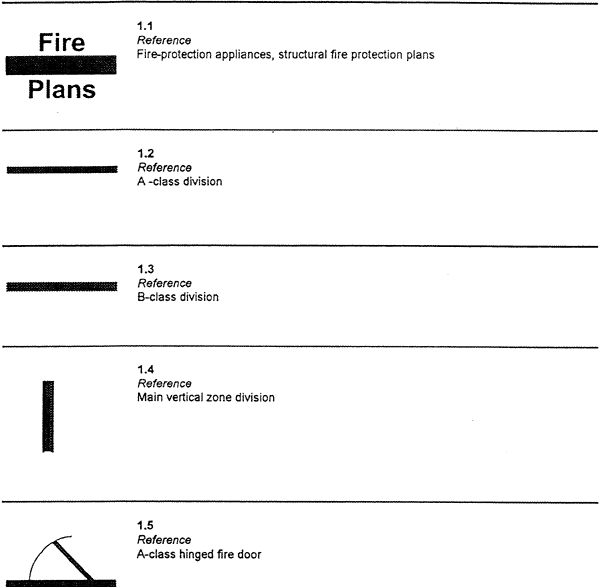

Annex A (normative) Graphical symbols for use in plans
Annex A
(normative)
Graphical symbols for use in plans
Notes The symbol should be at the door position and should show the actual direction of opening. Add WT to the symbol in case of watertight door. Add SWT to the symbol in case of semi-watertight door.
Notes
The symbol should be at the door position and should show the actual direction of opening.
Add WT to the symbol in case of watertight door.
Add SWT to the symbol in case of semi-watertight door.
