Figure 8  A junction, showing a separation line substituted

for a zone, where there will be crossing traffic

These methods are used where two routes join or cross. The directions of traffic flow are established in the lanes of the adjoining schemes; the separation zone may be interrupted, as shown in figures 6 and 7, or replaced by a separation line, as shown in figure 8, in order to emphasize the correct method of crossing by traffic changing from one scheme to the other.

.5.3  Precautionary areas

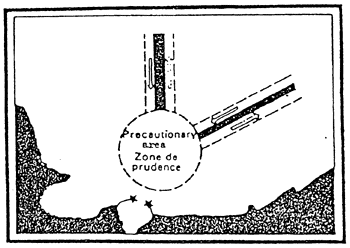

Figure 9  Precautionary area at a focal point
