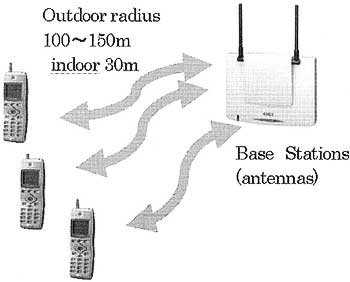

■ PHS (Digital Cordless Telephone System)
Base Station Locations Plan
| (Enlarged Image: 11KB) |
 |
|
|
|
Optional Features
Multi-key telephone (MKT-E)
Busy Override Restrictive
Group Call
Digital Cordless System (PHS)
IP termination
Digital Multi-key IP Telephone (MKT-IP)
Digital Cordless IP Base Station
Soft phone System
Trunk Line Features
INMARSAT Access, Cellular Tel. Access, Shore Connection Access
Direct in lines (DIL)
Direct Inward Station Access (DISA)
Direct Group Line (DGL)
Trunk line display
Options
Call detail Recording
Maintenance
Trouble Indication
Web maintenance
■ Specifications
Model: OAE-1200B Marine Digital Automatic Telephone Exchange
| Model |
OAE-1200BL |
| Control System |
Stored program centralized control system |
| Speech Path System |
PCM time division exchange system |
Number of Port (Maximum)
Trunk & extension lines |
128 |
| Digital Cordless Base Station |
32 |
| Digital Cordless Telephone Capacity |
128 |
| IP Extension |
128 |
| Voice over Wireless LAN System |
VR2100 series |
| Paging access |
4 groups |
| Numbering Plan |
2, 3, 4 Digit |
| AC Power supply |
1Φ, 50/60Hz, 100/220V |
| DC Power supply |
DC24V (20-30V) |
| Power consumption (Maximum) |
400VA/160W |
| Dimension |
485w×720H×310D |
| Mass (kg) |
About 50kg |
|

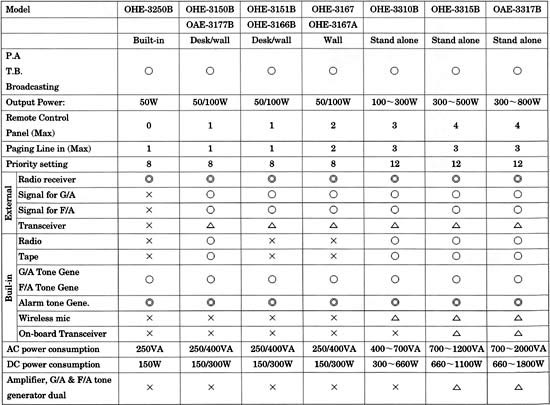

■ Public Addressor Systems Specifications
|
◎:Standard ○:Option △:Especial ×:Unable
|

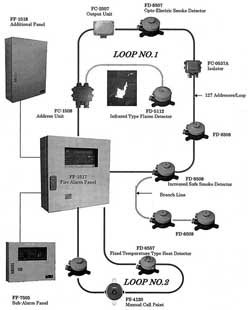

NEW TYPE 2-LOOP ADDRESSABLE
FIXED FIRE DETECTION AND FIRE ALARM SYSTEM
| (Enlarged Image: 70KB) |
 |
|
|
|
■ This addressable system is equipped with various functions.
・To inform you the address number of a fire flame on the panel in the event of a fire in a moment.
・Suspension of Detector (per address / group / loop) by operating MENU.
・To control sensitivity of Analogue Smoke Detector.
・To minimize alarm errors using its test mode for dust cleaning, etc.
・Any type of signal output is available by programming.
・To print out information in the event of a fire being detected.
・To print out past log by operating MENU.
・Monitoring is available while cable being cut off by multi electrical transmission.
・To minimize a fire trouble when a cable trouble occurs by connecting Isolator to Loop.

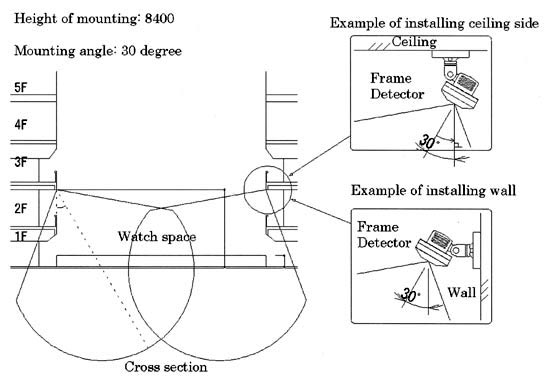

■ Frame Detector Installation Plan
Installation example (Depend on following installation condition.)
|
