SIMPLIFYING THE Pb1/Pb2EQUATIONS
VERSION 1,0 - FOR DISCUSSION BY WG18
NOTE - All formulae are subject to further checking and verification IF approved by WG
PREAMBLE
In Baltimore, WG18 elected to move to a simplified form of load algorithm. This paper describes what is believed to be the simplest possible form for pressure, which still maintains very similar values to that given by the ISO draft, Pre-Baltimore.
TEXT FOR SIMPLIFIED FORM
Pb1 = 0,1 Δ / LWLBc (1 + ncg) kpr kL (1)
Where; ncg = 0,45 fw
kβ(V/√LWL) (2)
fw = 1,00 (A), 0,95 (B), 0,75 (C), 0,55 (D)
kβ = 0,80 for deep-sea craft
(deadrise at midships 18 degrees +), 1 ,0 for other craft
V/√LWL may not be taken as less than 2,36 and need not
be taken greater than 18.
kpr = pressure reduction factor
PRESSURE REDUCTION FACTOR (kpr) |
Component |
Low-speed craft
V/√L < 3,0 |
High-speed craft
V/√L > 3,0 |
Plating, where
b is the shortest unsupported span |
1,14 - 0,0019 b / LWL 0,4 |
8,2 L 0,36 b 0.6 |
Secondary stiffeners
which support plating (i.e. stringers, deck beams, transverse frames) |
0,8 . kpr (Plating) |
0,8 . kpr (Plating) |
Primary frames
which support secondary stiffeners (i.e. girders, deep transverse frames, floors) |
0,5 . kpr (Plating) |
0,5 . kpr (Plating) |
|
Limiting values of kpr
kpr (max) = 1,0
kpr (min) = 0,25 when used for flexural strength and stiffness applications, or 0,4 when used in shear strength applications for cored panels
If accepted, the following sections/figures become redundant:
・ncg equation (2)
・1,39 + 0,2.56 V/√LWL equation
(3)
・Table (3) {new service condition}
・Figure 3 { Measurement of deadrise angle}
・kar equation (6)
・Figure (5) - area-reduction factor
・Pb2 equation
THE APPENDICES PROVIDE JUSTIFICATION FOR THE REVISED 'BLUE' TEXT
APPENDIX A
A simplified ncg = linear
function of V/√LWL
There is a body of evidence that says ncg Varies as Vn where n is less than 2.
VTT
From Figure 2.3 of the VTT 1997 report, Pbase varies as Vn where n averages out at about 1,0.
DnV
The DnV 1993 HSLC rules adopt a design vertical acceleration of;
ncg = V/√L 3,2/L0,76
fo
fo = 1 for a yacht (all service area restrictions)
So for a 12m Length yacht, ncg
= 0.48 V/√L
(Note, the formula is unlikely to apply to very small craft)
UNITAS
The UNITAS HSC rules (1995) use a design acceleration of;
ncg = S V/√L
where S depends on type of service and sea area.
Table C3.3.1
Type of Service |
Open sea 1) |
Restricted open sea |
Moderate environment |
Smooth sea |
Passenger Ferry Cargo |
0,65 CF 2) |
0,20 |
0,15 |
0,09 |
Supply |
CF 2) |
0,30 |
0,23 |
0,14 |
Pilot |
1,33 ・ CF 2) |
0,40 |
0,30 |
Not applicable |
Rescue |
1,67 ・ CF 2) |
0,50 |
Not applicable |
Not applicable |
|
Notes:
1) |
For this condition, S is defined for each separate case, at
the discretion of the Society, depending on the actual service area |
2) |
For passenger, ferry and cargo craft, their seaworthiness
in this condition is to be ascertained. In general, S should not be lower than
the values given in this Table. where. |
|
|
|
|
The sea areas coincide almost exactly with ISO Design Categories
.3 The sea areas referred in Table C3.3.1 are defined with reference to significant wave blights Hs which are exceeded for an average of not more than 10 percent of the year:
− |
Open-sea service: |
HS ≥ 4,0 m; |
− |
Restricted open sea service: |
2,5 m ≤ HS< 4,0 m; |
− |
Moderate environment service: |
0,5 m < HS< 2,5 m; |
− |
Smooth sea service: |
HS≤ 0,5 m. |
This means it is easy to find fw values by dividing the UNITAS factor for a given sea area by the open sea factor for each vessel type. Averaging these out we get,
fw (D) = 0,44, fw (C) = 0,71, fw (B) = 0,94, fw (A) = 1,0.
These may be compared with the ISO values;
fw (D) = 0,5, fw (C) = 0,75, fw (B) = 0,95, fw (A) = 1,0.
This is rather encouraging.
Equation (3) of the ISO standard:
ncg = 1,39 + 0,256 V/√L
This dominates for highest speed-length ratio.
Revised ncg formula v ISO Eqn (3)
When averaged over the V/√L range 3,0 to 18,0, it is
possible to write ncg = 0,45 V√L Which is in line with
DnV (0,48) and UNITAS (0,53 - rescue craft category A).
Reduce by 20% for deep-sea craft.
ncg = 0,45fw
kβ(V/√LWL)
V√LWL Values required to
trip new limits in Table 3 (category A).
ncg = 1,5 means V/√LWL
= 3,3, ncg = 2.0 means V/√LWL
= 4,4
ncg = 3,0 means V/√LWL
= 6,7, ncg = 4,5 means V/√LWL
= 10
ncg = 6,0 means V/√LWL
= 13,3
So fast recreational sailing yacht will just fail to trip the sail limits of Table 3.
APPENDIX B
Justification for removal of Pb2 equation
Paul Handley has long argued that the Pb1 equation used with ncg = 1,0, gives very similar values to Pb2.
Taking V/√LWL = 2,36, the
revised ncg equation gives 0,45 . 1,0 . 2,36 = 1,062.
This has been checked out for a 'standard' sailing yacht of Tc = LWL/18 and LWL/BWL = 2,3 + LWL/10, Block coefficient = 0,40. The comparison is very good with the pre-Jour equation and pretty good with the ABS equation.
This is correct for category A.
There will be greater differences for category B (negligible) and C and D. This is because in Pb1, only ncg varies with fw, whereas the whole of Pb2 varies with fw.

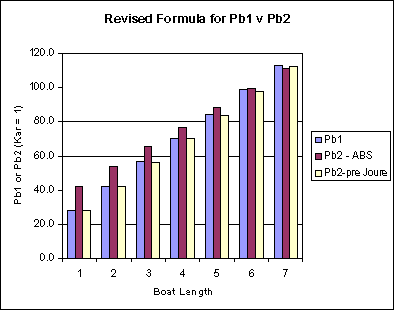

Revised Formula for Pb1 v Pb2
|
